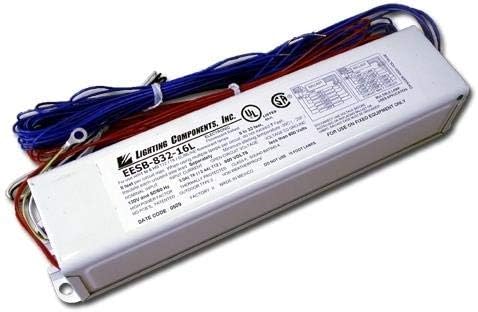

Allanson EESB Parallel Wired Electronic Ballast

Allanson EESB Parallel Wired Electronic Ballast

Regular price $135.98
Regular price Sale price $135.98
Sale Sold out

Allanson’s EESB Ballast offers ease of wiring for new sign installs, which is favored by higher volume production sign builders. They can also be used as field replacements for ferromagnetic ballasts, but require rewiring of the lamp sockets. Rewiring diagrams are provided to minimize guesswork. obsolete ferromagnetic counterpart.

  • For use with T12 HO, T8 HO and Slimline Lamps
  • Easy installations with easy to use red/blue parallel wiring
  • Rewiring of the lamp sockets required when used as a replacement for ferromagnetic ballasts
  • 5 Models replace 26 magnetic ballasts for less inventory requirements
  • Available in 120V and multi-voltage 120-277V
  • Runs cooler than conventional magnetic ballasts adding life to ballasts and lamps
  • Each lamp is on its own circuit and will stay powered if other lamps go out
  • Operates at a low line voltage so brown outs don’t effect it
  • Minimum starting temp: -30C
  • Light weight – from 2 to 9.5lbs
  • Title 24 Compliant

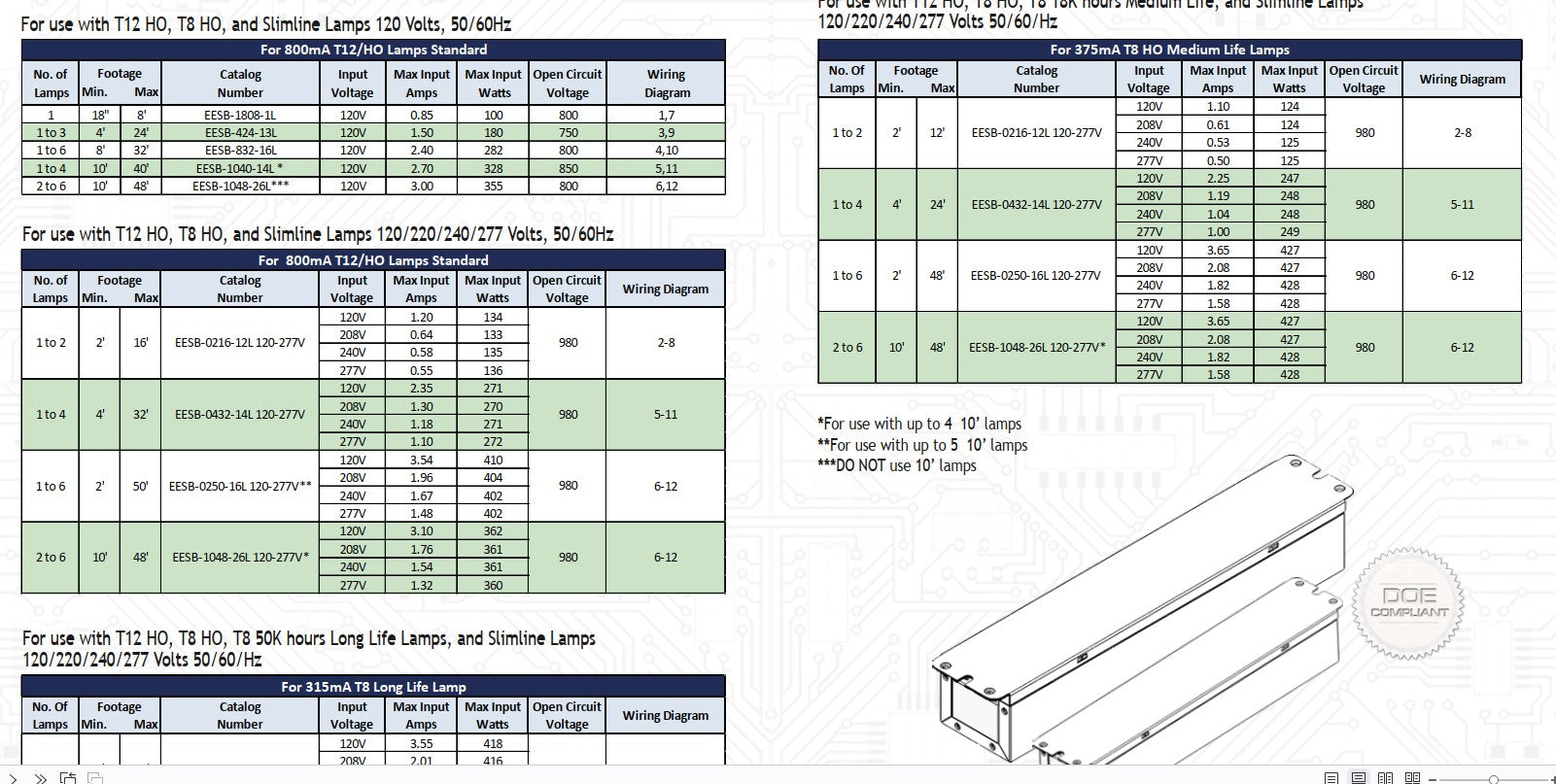

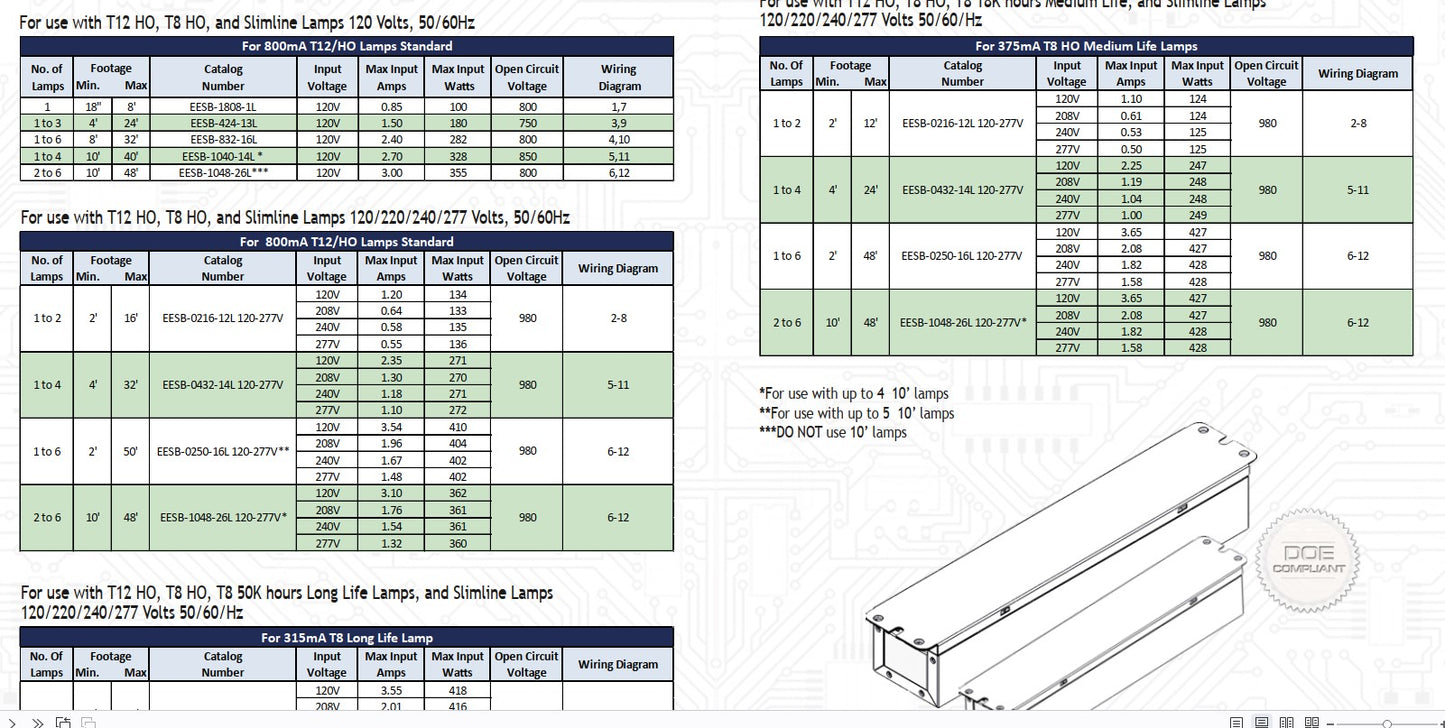

Spec Sheet
