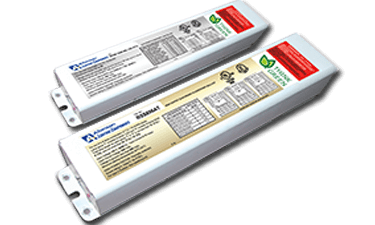

Allanson RSS Series Wired Electronic Ballasts

Allanson’s RSS Ballast features the efficiency of solid state with the convenience of conventional series wiring. This allows for ‘wire to wire’ matching to any Ferromagnetic Ballast in the field.

RSS Ballasts are designed as a more efficient direct replacement for traditional ferromagnetic sign ballasts, which translates to less time on site. This ballast offers a color to color matching of wires, making it a great service ballast when replacing its obsolete ferromagnetic counterpart.

• Direct replacement for ferromagnetic ballasts (no rewiring required)
• For use with T12 HO, T8 HO (2′ to 10′ in length)
• 3 RSS Ballasts replace 15 existing models for less inventory requirements
• Smaller profile allows for greater adaptability for low profile signage
• Quite operation in all conditions. (Sound rated ‘A’)
• Conventional series wiring
• Cold weather start at -30C
• Meets FCC rating, low RFI and EMI ensuring no interference
• Meets ANSI C82.11 Standards
• Less than 8% THD for installation confidence
• Thermal protection
• Increased lamp life

Spec Sheet
